LaFear







Engine Modifications:

  • Kenne Bell 1.7L Twin Screw Supercharger*
  • AIS Progressive Methanol Injection System*
  • Relocated Alternator to A/C compressor position*
  • JLT Cold Air Kit (Modified to fit)*
  • 284ci forged shortblock
  • Fox Lake (Stage II) ported stock heads
  • Diamond 10:1 aluminum forged pistons
  • Eagle H-beam forged connecting rods
  • FR500 valvetrain kit (cam specs: 204/214 duration .472 lift @.050)
  • Engine built & tuned by Alternative Auto
  • Meziere electric water pump*
  • BBK Longtube headers / BBK offroad X-pipe & magnaflow catback*
  • Granetelli Coil wire upgrade*
  • 2003 cobra aluminum flywheel w/ FRPP clutch

Suspension Modifications:

  • Tokico D-Spec Adjustable Shocks/Struts*
  • Solid axle conversion w/ 3.73 gears*
  • Pro3i tubular steel lower control arms (with 3 piece delrin/urethane bushings)*
  • Modified/reinforced stock upper control arms
  • Eibach performance springs (1.25 lowered) (with urethane offset steering rack bushings)*
  • Ford Motorsport aluminum driveshaft*
  • Eibach Anti-roll kit*
  • Maximum Motorsports Full length subframe connectors
  • Trickflow Differential Girdle/cover
  • Steeda two point chromoloy strut tower brace*
  • Aluminum two-point rear shock tower brace*

Additional Modifications:

  • Autometer Water, Oil & Boost gauges*
  • B&M ripper shifter*
  • Oddssey dry cell battery*
  • Painted door sills*
  • Touchscreen Pioneer DVD Entertainment Stereo
  • Redline Hydraulic hood lift kit*
  • Saleen Replica 18 x 9 & 18 x 10 polished rims  (some pictures only)*
  • Ford Motorsport 4.10 gearset
  • SCT management chipset tuned by Alternative Auto
  • MRT B-wing*

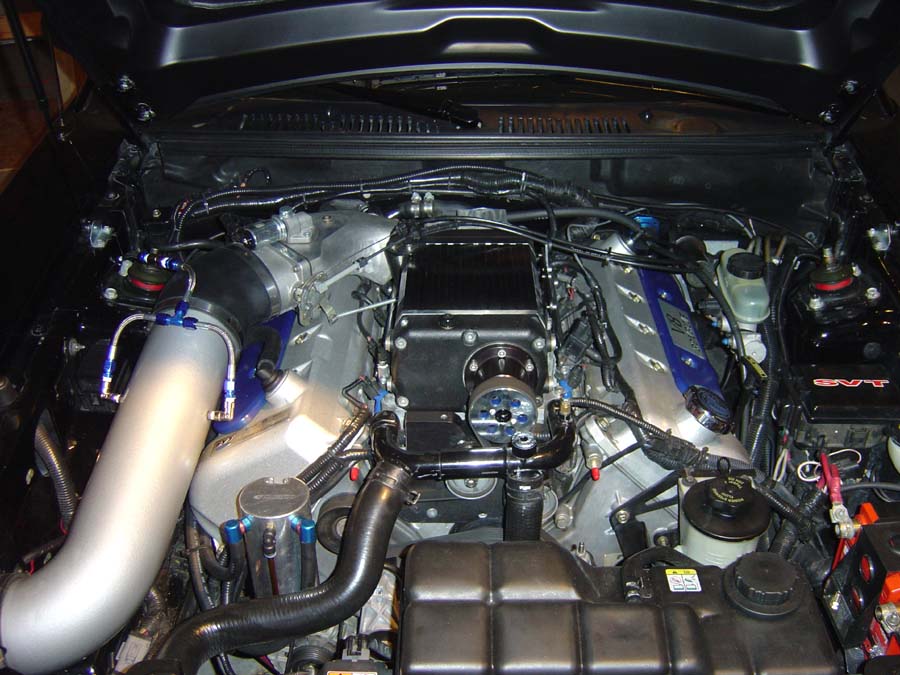

Supercharged DOHC 284ci

Mach1 splitter

Alternator Relocation to A/C compressor position



Milan Dragway: Summer 2005

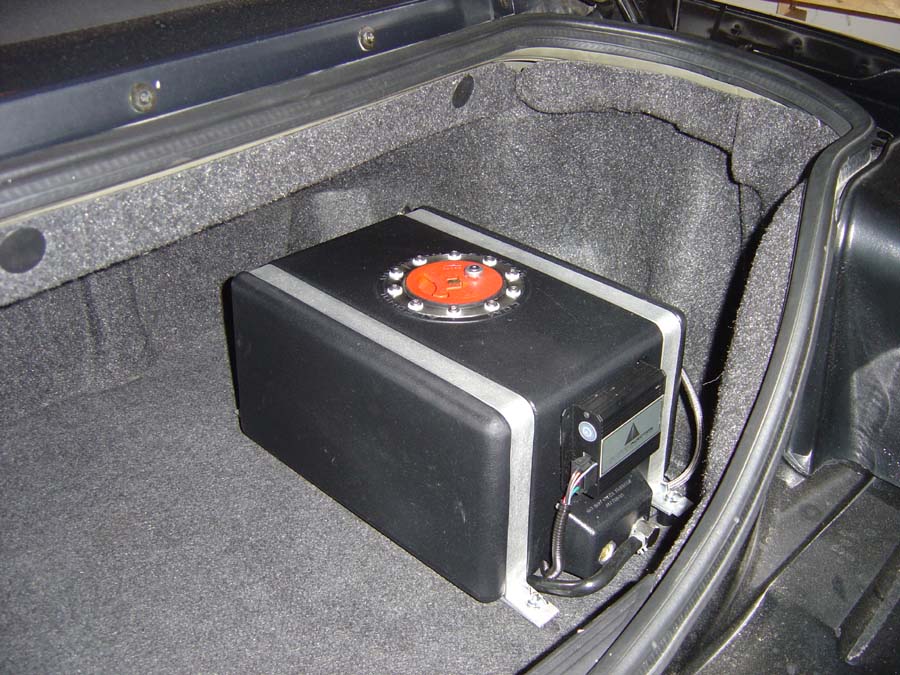

Methanol Installation March 2011

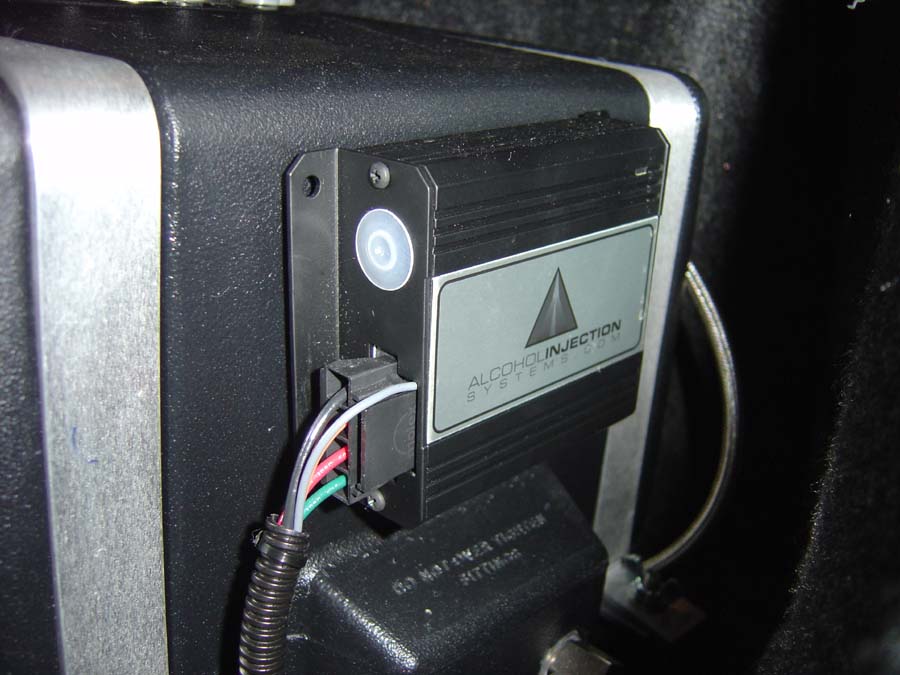

AIS Progressive Controller

Summer 2003

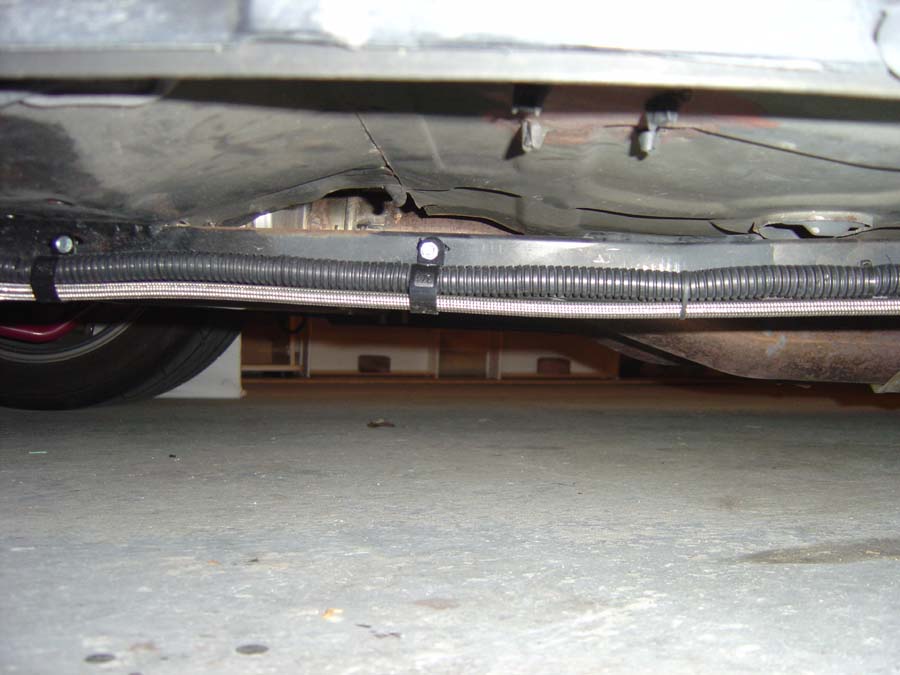

routing the power and fuel

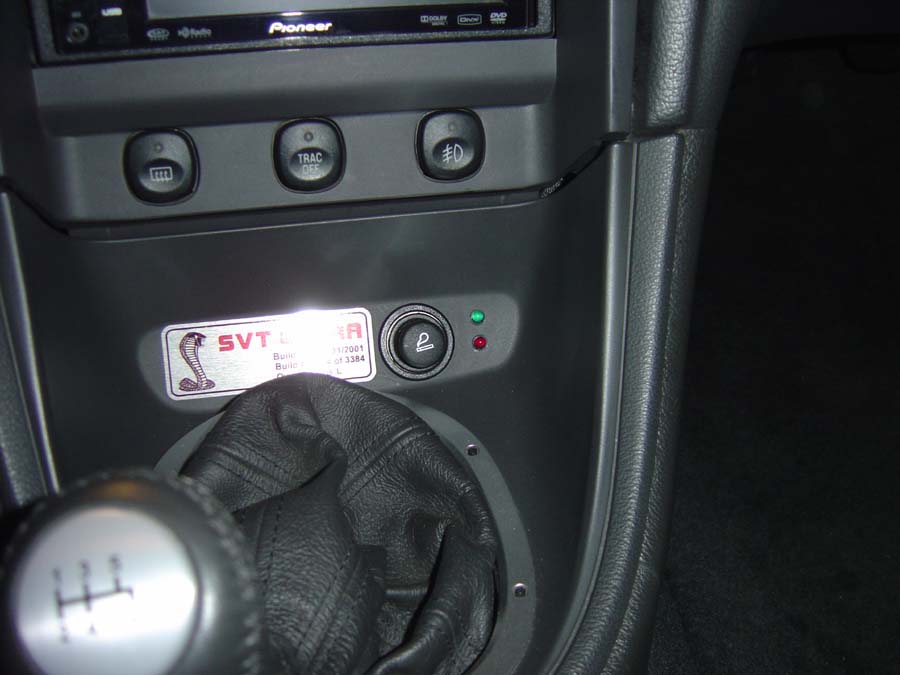

Green = Methanol pump active. Red = low fuel level

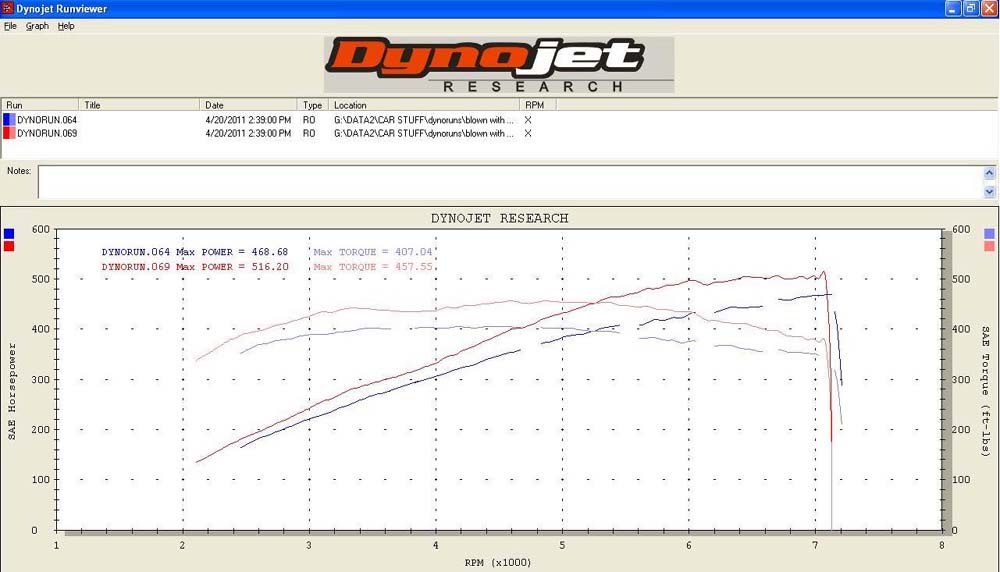

Latest Dyno at Alternative Auto 4/18/11




Drag Events





Open Track Events
